Name: Yanmar VIO33-7 Mini-Graver
Brand: Yanmar
SKU: 849297
Availability: InStock

Item:: 849297
Condition:: New
Manufacturer:: Yanmar
Model:: VIO33-7 Mini-Graver
Building year:: 2026
Engine power:: 25 Hp
Tracks:: 300 mm
Country:: Netherlands (the)
Price:: on request

Optional extras

Cabin

Rubber tracks

Airconditioning

Hydraulic quick-release system

Description

Show translation Show original description

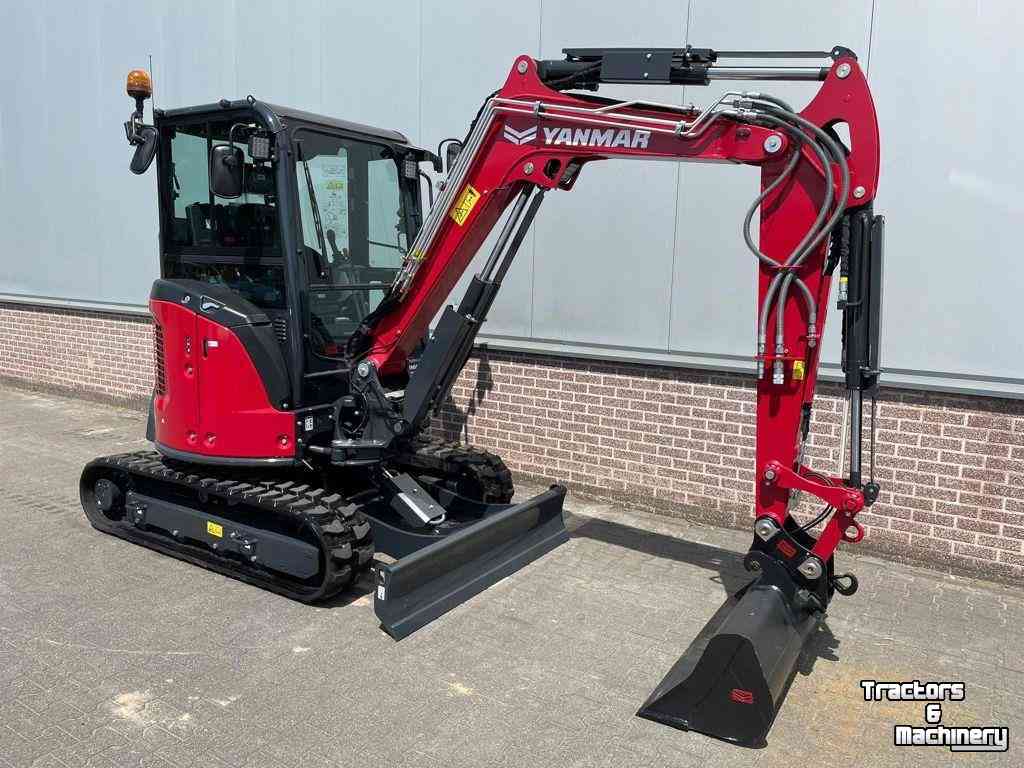

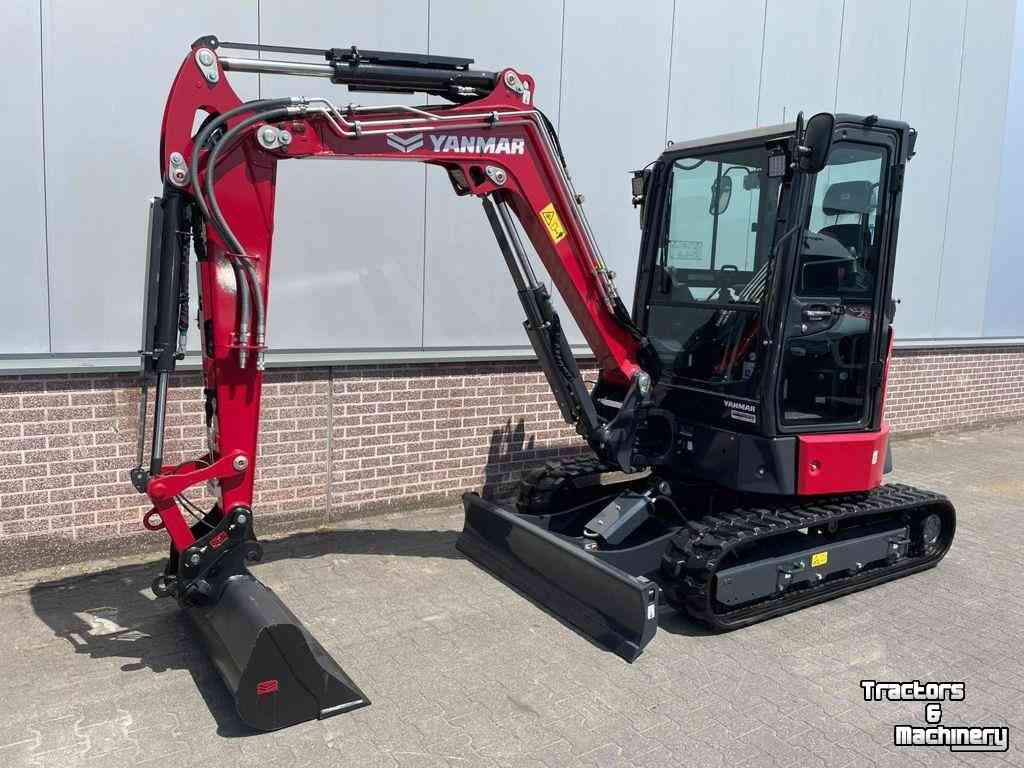

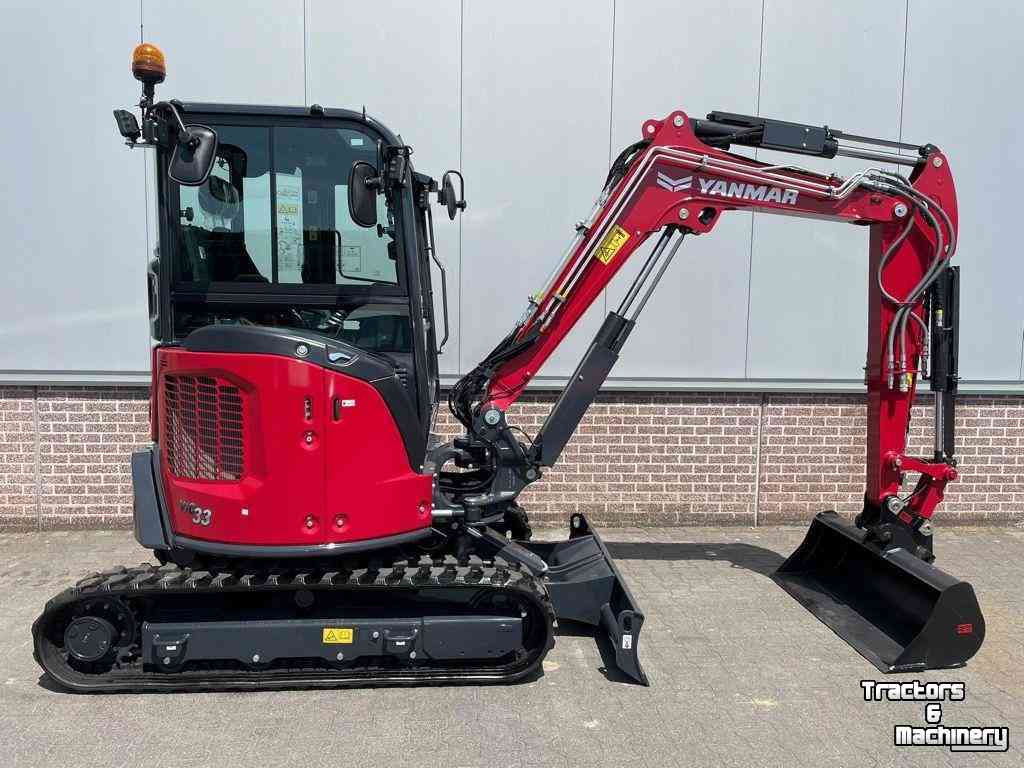

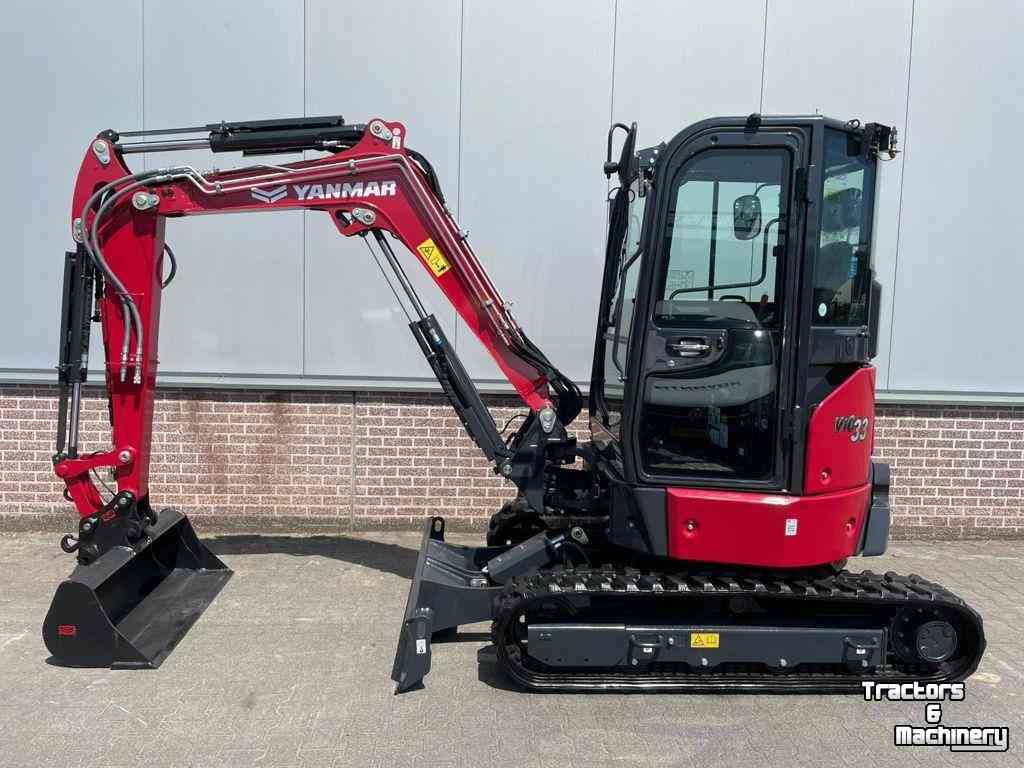

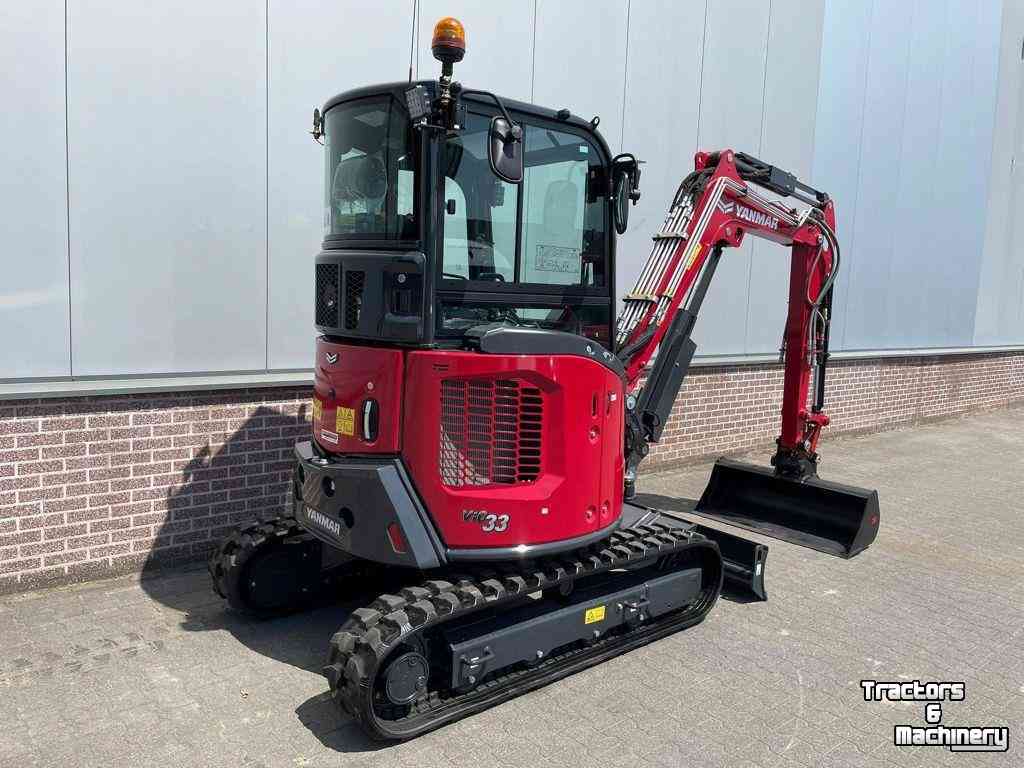

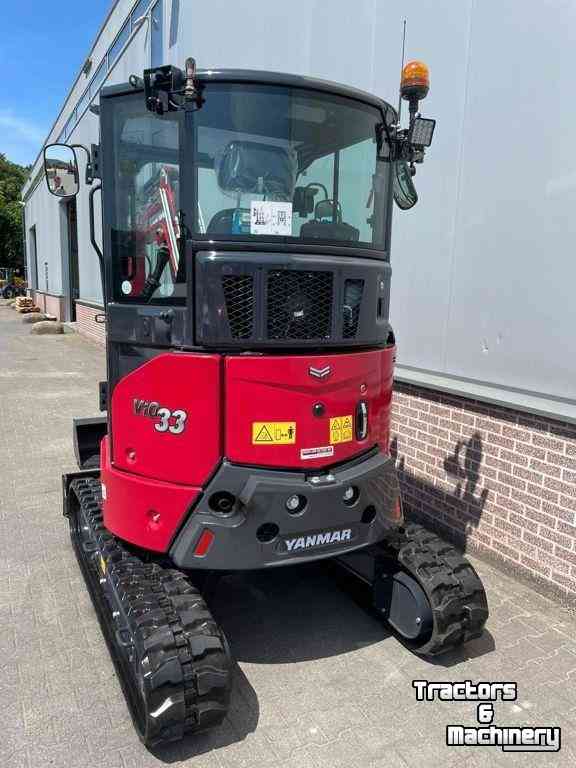

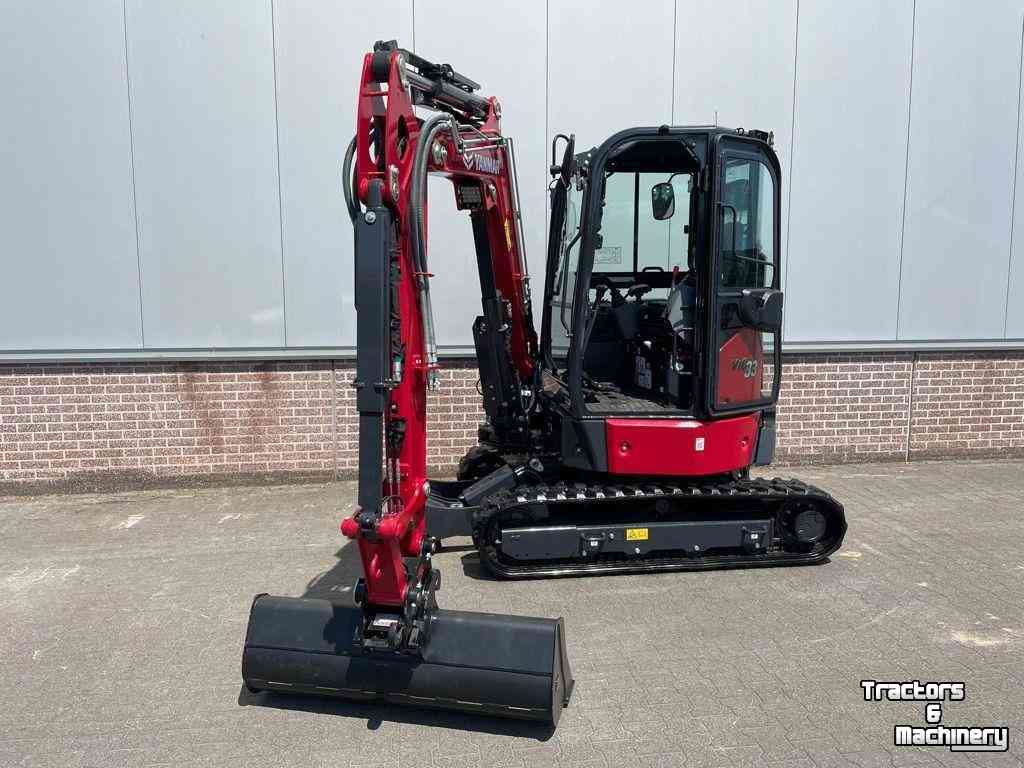

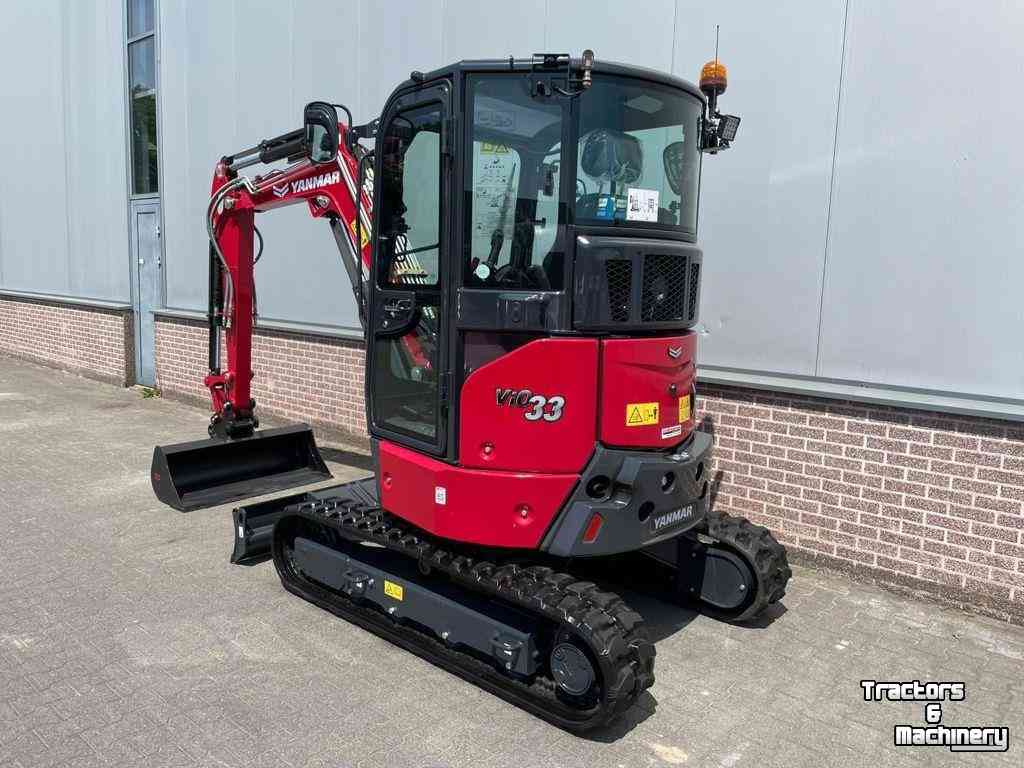

- Yanmar ViO33-7 mini excavator
- Operating weight 3390 kg (3550 kg including counterweight)
- Overall width 1550 mm
- 300 mm rubber tracks
- Yanmar 4-cylinder engine with 25.3 pk (Stage V)
- Cylinder guards on all cylinders
- Cab with air conditioning, air-suspension seat, heating, and radio
- Long arm
- Additional counterweight 160 kg (removable)
- Very spacious cab
- Rearview camera
- 2 additional functions / demolition / sorting function (proportionally controlled)
- Auto-idle for fuel savings
- LED work lights
- Yanmar ViPPS system (dual plunger pump and 2 gear pumps)
- 2nd travel speed (2.9–4.8 km/h)
- Hydraulic quick coupler + load hook
- Cleanup bucket

= More information =

Drive system
Drive system: Track

Weights
Empty weight: 3,400 kg

Financial information
Price: Upon request

Other information
Transport dimensions LxWxH (cm): 451x155x246 cm
Bucket arm length (cm): 147 cm
Max. undercarriage width (cm): 155 cm
Min. undercarriage width (cm): 155 cm
Dozer blade width (cm): 155 cm
Maximum digging reach (cm): 511 cm
Maximum loading height (cm): 330 cm
Maximum digging height (cm): 472 cm
Maximum digging depth (cm): 319 cm
Maximum breakout force (kN): 30 kN
Maximum digging force (kN): 16 kN
Maximum climbing ability (%): 30%
Max. hydraulic operating pressure (bar): 210 bar
- Yanmar ViO33-7 minigraver/ graafmachine
- Bedrijfsgewicht 3390 kg (3550 kg incl. contragewicht)
- Totale breedte 1550 mm
- Rubbertracks 300mm
- Yanmar 4 cilindermotor met 25.3 pk (stage V)
- Cilinderbescherming op alle cilinders
- Cabine met airco, luchgeveerde stoel, verwarming en radio
- Lange arm
- Extra contragewicht 160kg (demontabel)
- Zéér ruime cabine
- Achteruitkijk camera
- 2 extra functies/ sloop/sorteer functie (proportioneel bedienbaar)
- Auto-idle voor brandstofbesparing
- LED werklampen
- Yanmar ViPPS systeem (dubbele plunjerpomp en 2 tandwielpompen)
- 2e rijsnelheid (2.9 - 4.8 km/h)
- Hydraulische snelwissel + Lasthaak
- Opschoonbak

= Meer informatie =

Aandrijving
Aandrijving: Rups

Gewichten
Ledig gewicht: 3.400 kg

Financiële informatie
Prijs: Op aanvraag

Overige informatie
Transport afmeting LxBxH (cm): 451X155X246 cm
Lengte lepelsteel (cm): 147 cm
Max. breedte onderwagen (cm): 155 cm
Min. breedte onderwagen (cm): 155 cm
Schuifbladbreedte (cm): 155 cm
Maximum graafbereik (cm): 511 cm
Maximum laadhoogte (cm): 330 cm
Maximum graafhoogte (cm): 472 cm
Maximum graafdiepte (cm): 319 cm
Maximum opbreekkracht (kN): 30 kN
Maximum graafkracht (kN): 16 kN
Maximum klimvermogen (%): 30%
Max. hydraulische werkdruk (bar): 210 bar
